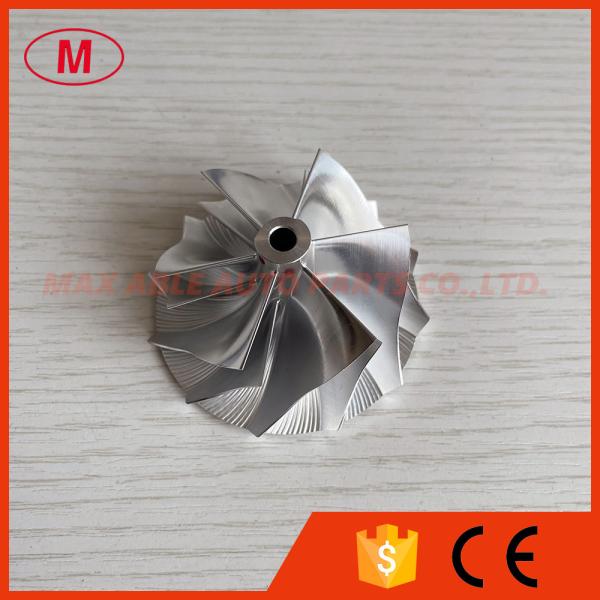

RHF5 reverse 50.50/61.00mm 6+6 blades high performance Turbo milling/aluminum 2618/billet compressor wheel

Brand Name : NO

Model Number : RHF5

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Size : 64.40/82.00mm

Type : Turbochargers

Contact Now

1. MODEL:RHF5 reverse

2.RHF5 reverse 50.50/61.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:10.77mm

inducer:50.50mm

Inducer:61.00mm

Tapered tip exducer:65.00mm

Tip height:5.02mm

Superback:1.53mm

Overall height:33.00mm

bore size :5.10mm

bore type:through

Trailing Angle:60 degree

Cutback:3.0mm

SP height angle:-4.30

Blade height:27.66mm

Splitter height:18.20mm

Tapered tip Angle: 26.5 degree

It is custom size ,please check carefully before buying

6+6 blades

reverse rotation

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
