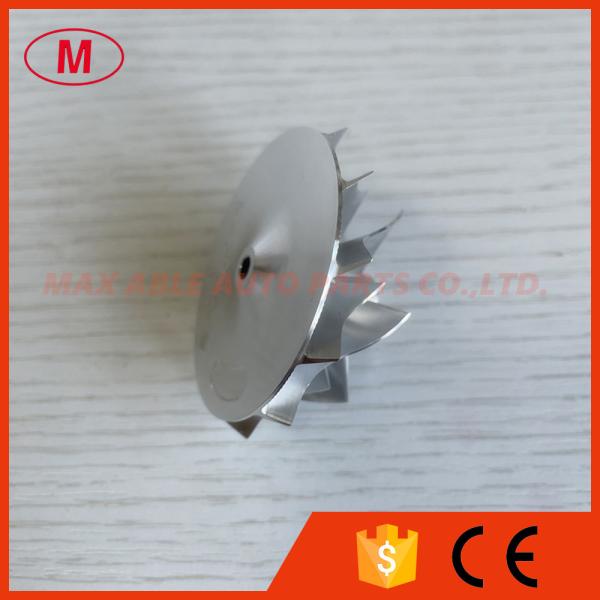

TD03 14T close 39.55/51.00mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel

Brand Name : NO

Model Number : TD03

Place of Origin : CHINA

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:TD03 14T Close FORWARD

2.TD03 14T close 39.55/51.00mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:10.29mm

Inducer:39.55mm

Exducer:51.00mm

Tapered tip exducer:55.61mm

Tip height:5.00mm

Superback:1.90mm

Overall height:24.50mm

Trailing angle:60 degree

Cutback:0.0mm

blade height:19.39mm

bore size :4.00mm

bore type: through

SP height angle:-5.00

Splitter height:13.40mm

6+6 Blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced

we can also produce as your requirement.
