RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel

Product Categories
Max Able Auto Parts Co.,Ltd.
Contact Now

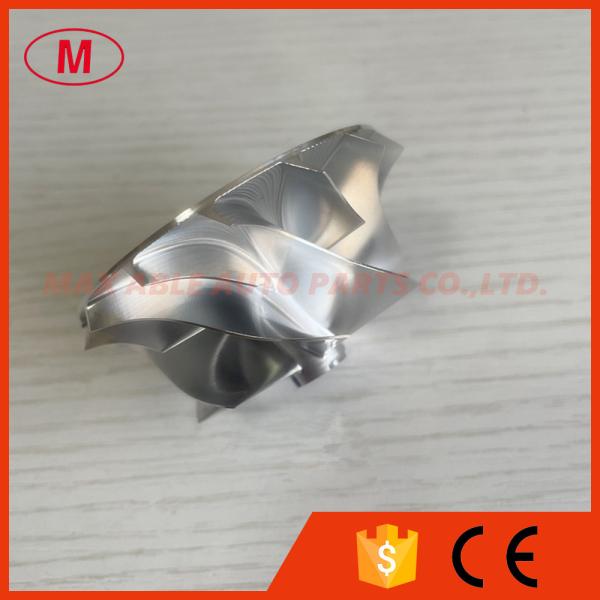

RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel

Model Number : RHF5

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Size : 46.50/60.00mm

Type : Turbochargers

Contact Now

1.Model:RHF5 Forward
2.RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel

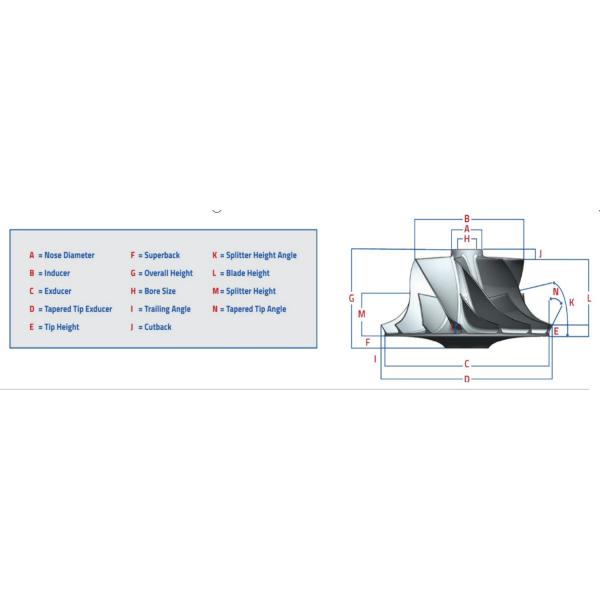

3.Size:
Nose diameter:11.00mm
Inducer:46.50mm
Exducer:60.00mm
Tapered tip exducer:65.02mm
Tip height:5.35mm
Superback:4.50mm
Overall height:34.60mm
Bore size:5.10mm
bore type:through
Trailing angle:60 degree
Cutback:4.2mm
SP Height angle:0.00
Blade height:27.30mm
Splitter height:13.10mm
7+7 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheel have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
