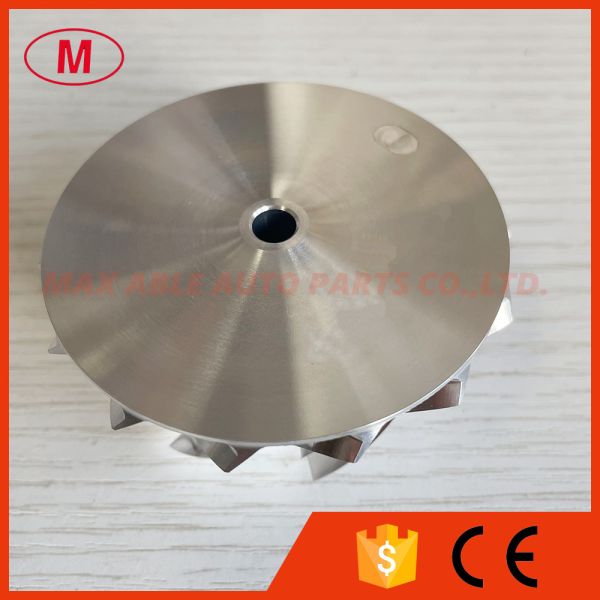

RHF5 reverse 7+7blades 52.00/63.00mm high performance bore:6.10mm turbo milling/aluminum 2618/billet compressor wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : no

Model Number : RHF5

Place of Origin : China

MOQ : 1PC

Payment Terms : TT,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:RHF5 reverse

2.RHF5 reverse 7+7blades 52.00/63.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.50mm

Inducer:52.00mm

exducer:63.00mm

Tapered tio exducer:67.04mm

Tip height:4.50mm

Superback:1.00mm

bore size :6.10mm

Bore type:through

Overall height:31.50mm

Cutback:3.0mm

Trailing Angle:45 degree

Blade height:28.00mm

Sp Height angle:-5.00

Splitter height:18.00mm

7+7 blades

reverse rotation

It is for custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
